How to Create Multi-Layered Dimensional Signs: A Comprehensive Guide

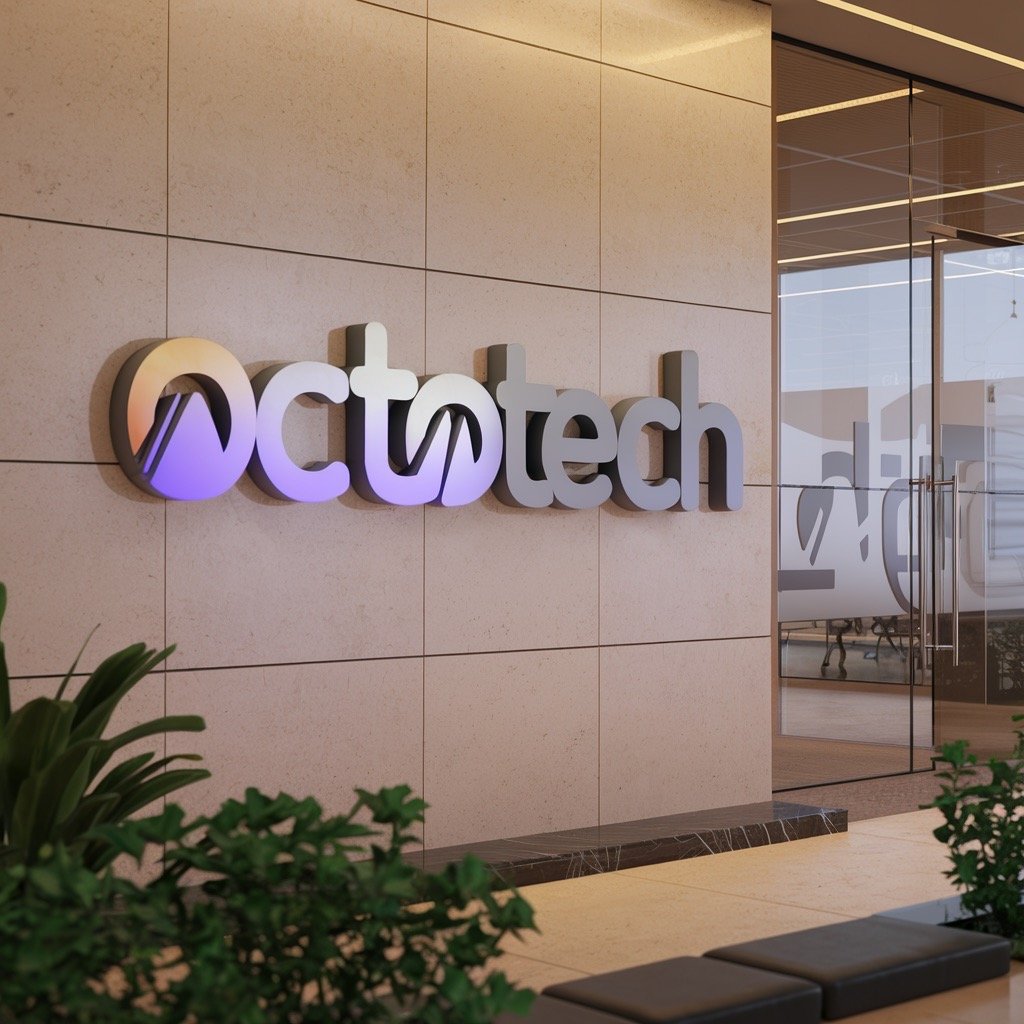

Multi-layered dimensional signs do something flat signage cannot: they create depth, cast shadows, and demand attention. Businesses use them for storefronts, lobbies, and trade shows because the layered construction adds visual weight that reinforces brand presence.

This guide covers the full process—from selecting materials and designing your layout to assembling layers and mounting the finished sign. Whether you are building a sign yourself or working with a professional sign shop, understanding these fundamentals helps you make better decisions and get better results.

What makes dimensional signs different from flat signs?

Traditional flat signs print graphics on a single surface. Dimensional signs build up from that surface using multiple layers, raised letters, or sculptural elements. The result is a three-dimensional appearance that catches light differently throughout the day and stands out in environments crowded with flat signage.

The visual impact comes from real physical depth. When light hits a dimensional sign, it creates natural shadows between layers. This shadow effect makes the sign appear more substantial and professional—qualities that matter for brand perception in retail, corporate, and event settings.

Which materials work best for dimensional signs?

Material choice affects appearance, durability, weight, and cost. Here are the most common options:

Acrylic

Acrylic delivers a sleek, modern look with excellent clarity. It comes in various colors and finishes (glossy, matte, frosted) and works well for illuminated signage. Acrylic is lighter than glass and more impact-resistant, though it can crack under severe stress. For indoor applications and custom acrylic signs, it remains a top choice.

PVC (Polyvinyl Chloride)

PVC is lightweight, affordable, and easy to cut into custom shapes. It resists moisture and handles temperature changes reasonably well, making it suitable for both indoor and outdoor use. The trade-off: PVC can warp in extreme heat and may not hold fine detail as crisply as acrylic or metal. For custom PVC signs, it offers good value for budget-conscious projects.

Aluminum Composite Panels (ACP)

ACP consists of two thin aluminum sheets bonded to a polyethylene core. This construction provides the metallic look of solid aluminum at roughly half the weight. ACP stays flat and rigid across temperature swings, resists corrosion, and supports high-resolution graphics. For large outdoor dimensional signs, ACP typically outperforms PVC on durability while costing less than solid metal.

Wood

Wood offers warmth and texture that synthetic materials cannot replicate. It suits rustic branding, artisanal businesses, and environments where natural aesthetics matter. The downside: wood requires more maintenance outdoors. Rain, sun, and insects can damage unprotected wood over time, so plan for sealing and periodic refinishing.

Solid Aluminum and Stainless Steel

For premium durability and a high-end appearance, solid metals are hard to beat. Custom aluminum signs resist rust and last for years with minimal care. Stainless steel handles extreme conditions—heat, chemicals, coastal salt air—better than most alternatives. The trade-off is weight and cost: metal signs are heavier and more expensive to fabricate and install.

How do you design a multi-layered sign?

Good design starts before you touch any materials. Consider these factors:

Purpose and environment

Ask what the sign needs to accomplish. Is it identifying a business entrance? Directing visitors through a building? Creating a photo-worthy moment at an event? The answer shapes size, material choices, and mounting options.

Environment matters too. Indoor signs face different challenges than outdoor signs. A lobby sign might prioritize aesthetics and lighting effects, while a storefront sign must withstand weather, UV exposure, and potential vandalism.

Layer hierarchy

Dimensional signs work best when the visual hierarchy is intentional. Decide which elements should pop forward (usually logos or key text) and which should recede (backgrounds, secondary information). More prominent elements get placed on front layers; supporting elements stay further back.

Creating your design blueprint

Use design software (Adobe Illustrator, CorelDRAW, or AutoCAD) to create precise measurements and layer separations. A detailed blueprint prevents costly cutting mistakes and ensures all components fit together correctly during assembly. Include notes on material type, thickness, and finish for each layer.

What tools and techniques do you need for fabrication?

The fabrication process varies by material, but several principles apply broadly:

Cutting

Accurate cuts define the quality of your finished sign. For wood and PVC, a jigsaw or CNC router produces clean edges. For acrylic and metal, laser cutting delivers smooth finishes and allows for intricate detail work. CNC routing works well for thicker materials or when you need routed channels for lighting.

Shaping and finishing edges

After cutting, sand or polish edges to remove roughness. This step is especially important for acrylic (which can show tool marks) and metal (which can have sharp burrs). Clean, finished edges look more professional and are safer to handle during installation.

Painting and surface finishing

Apply finishes before assembly when possible. This approach lets you reach all surfaces easily and prevents adhesive from interfering with paint adhesion. Use primers appropriate to your material, allow proper drying time between coats, and consider UV-resistant topcoats for outdoor signs.

How do you assemble layers for maximum depth?

Layer assembly is where dimensional signs come to life. The key is using spacers strategically to create shadow depth.

Spacer placement

Spacers slide onto mounting studs between sign layers, offsetting each layer from the surface behind it. Common spacer materials include foam, plastic, and metal sleeves. Spacer length determines shadow depth—longer spacers create more dramatic effects.

For most dimensional letters and logos, spacers between 0.5 and 1.5 inches create noticeable depth without making the sign appear bulky. Experiment with different lengths on a test piece before committing to your final assembly.

Adhesive options

Choose adhesives based on material and environment:

• Epoxy resin: Creates strong, permanent bonds. Best for outdoor signs and heavy materials.
• Spray adhesive: Works for lighter materials and temporary displays. Easier to reposition during assembly.
• Double-sided tape: Good for thin layers or elements that may need adjustment later. Not recommended for outdoor use or heavy components.

Adding lighting effects

LED backlighting can enhance dimensional signs dramatically. Halo lighting (where LEDs shine from behind the sign onto the mounting surface) creates a glowing outline effect. Edge lighting works well with acrylic to illuminate the material itself. Plan lighting channels and wire routing during the design phase—retrofitting lights into a finished sign is much harder.

What mounting options work for dimensional signs?

Mounting hardware affects both appearance and long-term stability. Match your approach to the sign's weight, material, and location.

Stud mounting

Most dimensional letters use stud mounts: threaded metal pins attached to the back of each letter. You drill corresponding holes in the mounting surface, apply adhesive, and slide the letters into place. This method hides all mounting hardware for a clean, professional look.

Standoff mounting

Standoffs are decorative spacers that hold a sign panel away from the wall. They create a floating effect and work well for acrylic panels, plaques, and layered assemblies. Standoffs come in various finishes (brushed stainless, chrome, matte black) and can complement your sign's design.

Flush and bracket mounting

Z-clips and French cleats allow signs to hang flush against walls without visible hardware. Heavy signs may require brackets or through-bolts for adequate support. For professional installation, your sign shop can assess the mounting surface and recommend the most secure approach.

How do you maintain dimensional signs over time?

Maintenance keeps your sign looking sharp and extends its lifespan:

• Regular cleaning: Wipe down surfaces with mild soap and water. Avoid harsh chemicals that can damage finishes or cloud acrylic.
• UV protection: Apply UV-resistant coatings annually to outdoor signs, especially wood and painted surfaces.
• Hardware inspection: Check mounting hardware periodically for loosening, rust, or wear. Tighten or replace as needed.
• Prompt repairs: Address chips, cracks, or loose layers quickly to prevent further deterioration.

Next steps for your dimensional sign project

Multi-layered dimensional signs combine craftsmanship, material science, and design thinking. The process rewards careful planning: choose materials that match your environment, design with intentional depth hierarchy, and select mounting hardware that will hold up over time.

If you are considering a dimensional sign for your business or event, start a project with SF Bay Signs. We fabricate custom dimensional signage in Berkeley and ship nationwide, with professional installation available throughout the Bay Area.

FAQ

What materials work best for outdoor dimensional signs?

Aluminum composite panels (ACP) and PVC are popular choices for outdoor dimensional signs. ACP offers excellent weather resistance, stays flat in temperature changes, and weighs about half as much as solid aluminum. PVC resists moisture and UV exposure but may warp over time in extreme heat. For coastal or high-humidity environments, ACP typically outperforms PVC for long-term durability.

How do spacers create depth in dimensional signage?

Spacers are small blocks or sleeves (typically foam, plastic, or metal) placed between sign layers. They physically separate each layer from the one behind it, creating natural shadows when light hits the sign. The shadow depth depends on spacer length—longer spacers create more dramatic shadows. This technique transforms flat graphics into eye-catching 3D displays.

Can I install dimensional letters myself?

Yes, with the right preparation. Most dimensional letters use stud mounting: threaded metal pins on the back that slide into pre-drilled holes in your wall. You will need a paper template for hole placement, a level, a drill with the correct bit size, and construction-grade adhesive. For large or heavy signs, professional installation ensures proper alignment and secure mounting.

How long do dimensional signs last outdoors?

Lifespan depends on materials and maintenance. Aluminum composite panels typically last 10+ years outdoors with minimal maintenance. Acrylic can last 5–10 years but may yellow or crack without UV protection. Wood signs require annual sealing and may last 3–7 years depending on climate. Regular cleaning and protective coatings extend the life of any dimensional sign.
